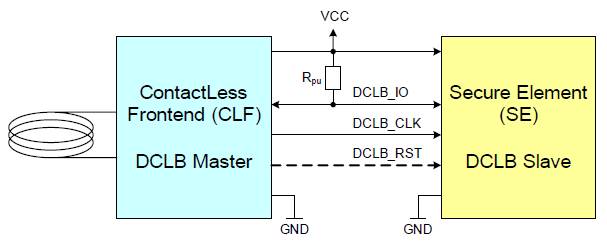

DCLB Pin Connection between CLF and SE

Only CLK and IO pin are used

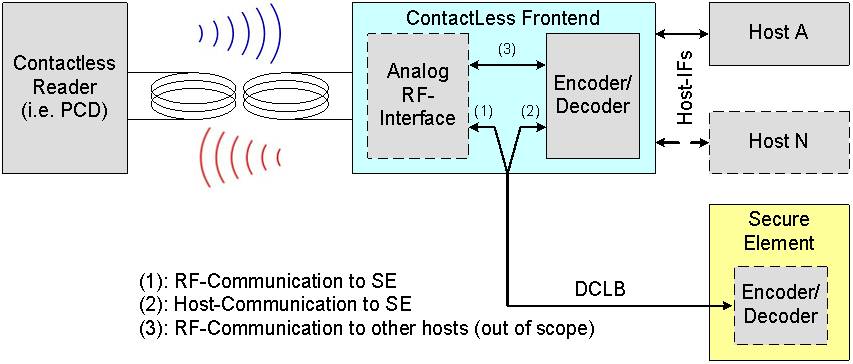

DCLB Interface

-    DCLB is a firmware focused implementation of a high speed interface between CLF and SE.
-    DCLB use existing pin lay out ( clock, IO, etc).
-    DCLB object code size is <5Kb, so can be easy implemented into an CLF or SE.
-    Semiconductor vendors can license DCLB specification free of charge.


Benefit 1:        Can start up with any given type and baud rate combination
                         => Fulfills needs of MNOs

Benefit 2:        DCLB is demanded by major handset and CLF vendors and will became a new standard for high speed CLF-SE communication
                         => early differentiation possible
                         => Additional feature without costs

Segment:                       Semiconductor & components, Telecommunication products

Developer:                     Infineon Technologies AG. , Neubiberg, Germany

Available Region:         Japan

Developer URL:            http://www.infineon.com

Contact:                          info@jescaxb.com
